•Water Supply and Irrigation
•Cooling and Heating Systems
•General Industrial Applications

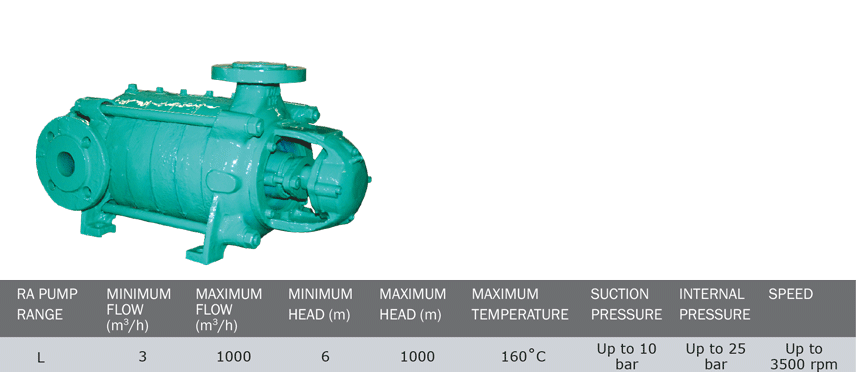

This pump design simulates pumping in series at a fraction of the cost, utilizing closed impellers separated by interstage casings and diffusers.
The shaft is sealed by packed gland or mechanical seal arrangement.
Replaceable shaft sleeves are fitted as standard.
Suction flanges PN16/DIN 2533, delivery flanges PN40/DIN 2535.
Pumps are driven from the suction end and the direction of rotation is clockwise (viewed from the drive end).
Grease lubricated grooved ball bearings are arranged on each side of the bearing housing brackets to absorb any residual forces.
L25 - L65
The shaft is supported by a bearing on either end which eliminates any over hanging forces while axial thrust is compensated by balance holes in each impeller.
Bearings are kept in position at all times by means of a balance discs.
